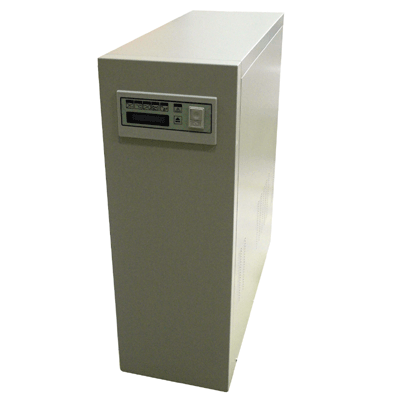

Solar / Wind Inverter PM-5000SW

Mã sản phẩm PM-5000SW

Số lượng

Thông tin tóm tắt sản phẩm

LCD display Wind charge controller Solar charge controller Multistage charger Fast Action AC Synchronized Transfer Switch Microprocessor based design Heat-Sink built in internal Soft Start AVR design Input & Output isolated

Hỗ trợ mua hàng

0987599957 - 01222544688

automation.saigon

dynamic_project

Description:
Solar / Wind Inverter with LCD Display~
PURE SINE WAVE Inverter with DC battery charger, Solar charge controller and Wind charge controller
Connect directly with Wind / Solar system
Natural Power System, Energy recycle for wind / solar, Future trend

Specifications:

Model No.	PM-5000SW
Output Power Continuous	5000W
1. Connection 1 - WT generator input
Input voltage range (3 phases input)	115V to 280VAC
Input voltage frequency	0 to 60 Hz
Maximum input current (continuous)	w/limitation
Maximum input power (continuous)	w/limitation W
2. OR
DC Input (solar pannel)	160V~400Vdc
AC Input	Auto by pass
By pass	Yes
Connection battery bank	Yes
Nominal battery voltage	192Vdc
Battery voltage range	160 to 215 Vdc
Maximum charging power (continuous)	1075w
Maximum charging current (continuous)	5 Amp @ 215Vdc
3. Connection 3 - grid connect
Output type	AC single phase
Output voltage (master mode)	230V +/-1%
Output frequency (master mode)	50 or 60hz +/-0.2%
Total harmonic distortion	< 3%
Maximum output power (continuous)	6.25 KVA
Maximum output power 20s	7.2 KVA
Maximum output current (continuous)	22 A
Dimensions (L x W x H mm)	38 * 73 * 94
Net Weight (by Kg/s)	68.00
