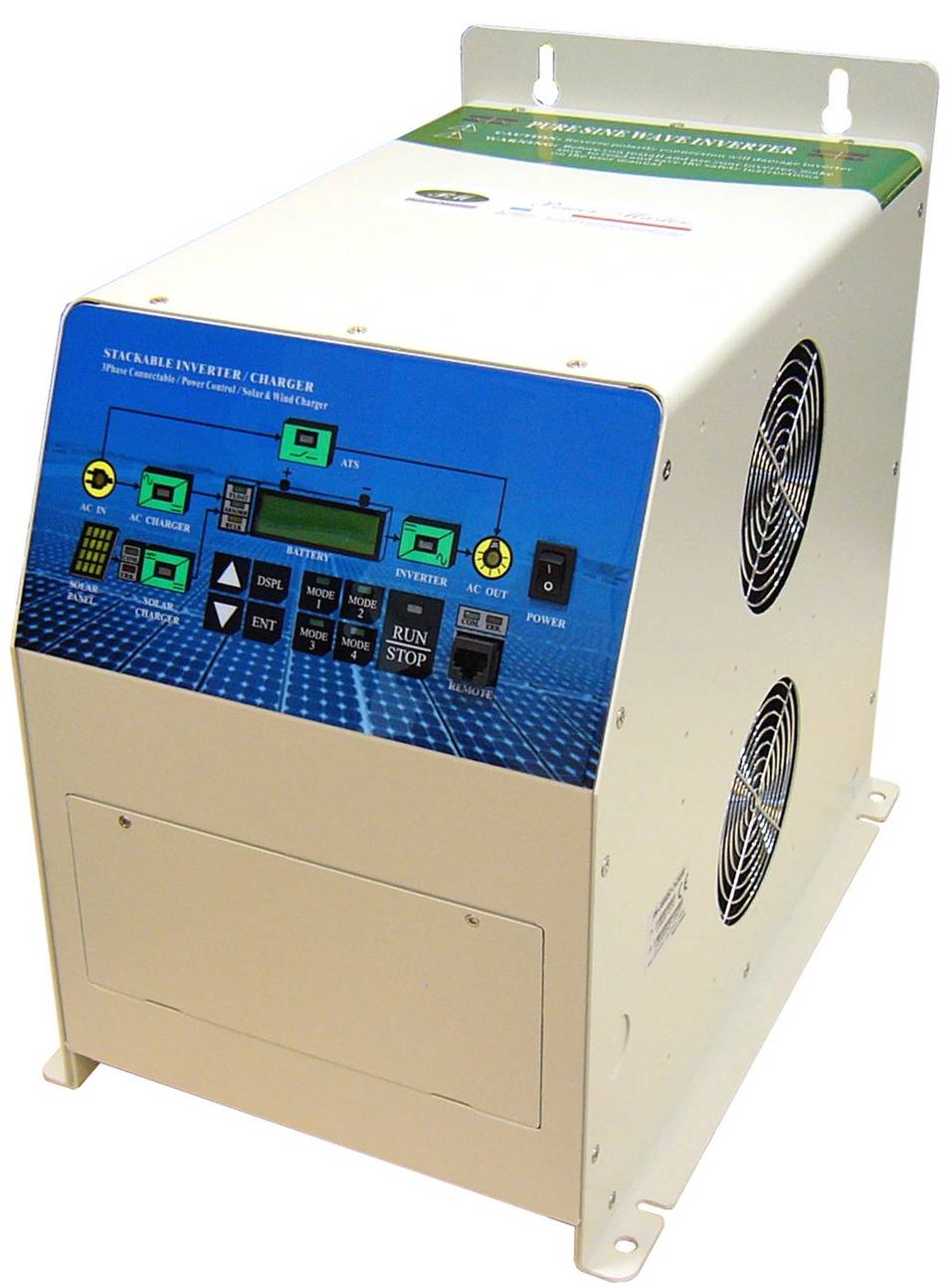

Inverter solar PM-3000SI

Mã sản phẩm PM-3000SI

Số lượng

Thông tin tóm tắt sản phẩm

More inverters stackable 3 Phase connectable Uninterrupted AC power (UPS function) Power Control - Dealing with limited generator or shore side power Power Assist - Boosting the capacity of shore or generator power LCD display for parameter setting and error messages Programming auxiliary rel

Hỗ trợ mua hàng

0987599957 - 01222544688

automation.saigon

dynamic_project

Description:
Stackable Inverter ~ When you need more power one day. Stack one more SI inverter to have more power.
Maximum 5pcs for each phase, 15pcs for 3phase.
3 Phase available ~ 2 or more SI inverters to have 3phase change is workable.
Solar charge controller: option and communicated with PM Premium series.
Premium series is stackable also. (Max. 10units).
PM provides off grid system at maximum 90KW inverter + 600Amp solar charge control.

Specifications:

MODEL	PM-3000SI-12 (12 Volt) PM-3000SI-24 (24 Volt) PM-3000SI-48 (48 Volt)
INVERTER
Input Voltage Range (VDC)	9.5~16VDC / 19~32VDC / 38~64VDC
Output Voltage (VAC)	90~120VAC / 185~240VAC
Output Frequency	50Hz / 60Hz ± 0.1%
Output Voltage	Pure sinewave
THD	< 5%
Power Factor	All loads
Switch-on Behavior	Nominal output voltage within 20 msec.
Cont. Output Power at 25°C(W) (cos£c=1.0)	3000W
Cont. Output Power at 40°C(W) (cos£c=1.0)	2400W
Maximum Power (W)	6000W
Maximum Efficiency (%)	84 / 86 / 89
Zero-load Power (W)	18W
CHARGER
Input Voltage Range (VAC)	100~125VAC / 200~250VAC
Input Frequency	45~55Hz / 55~65Hz
Power Factor	1
Charge Characteristic	4-stage adaptive
Maximum DC Voltage Ripple (Vrms)	< 1.25 V
Charge Voltage "Absorption" (VDC)	14.4V / 28.8V / 57.6V
Charge Voltage "Float" (VDC)	13.8V / 27.6V / 55.2V
Output Charge Voltage (VDC) Min.,Max.	8V,16V / 11V,32V / 22V,64V
Charge Current House Battery (A)	120A / 70A / 40A
Charge Current Starter Battery (A)	4A
AC INPUT SWITCH
Protected by Thermal Circuit Breaker	60A (110V) / 30A (220V)
Switch-over Time Inverter to AC Input	0 msec.
Switch-over Time AC Input to Inverter	0 msec.
Detection Time AC Input Fault	4 msec. to 10 msec.
Trip Level Mains to Inverter	90VAC / 180VAC
Trip Level Inverter to Mains	94VAC / 187VAC
Min.- Max. Frequency Range (50Hz/60Hz)	45~55Hz or 55~65Hz
GENERAL
Power Control	Yes
Power Assist	20A
Auto Transfer Switch (A)	30A
Multi-purpose Relay	3 relays
Protection	Output short circuit, Overload, Battery overvoltage, Battery undervoltage, Battery reverse polarity detection, Over temperature, High input voltage ripple
Common Characteristics	Operating temperature range: -20°C to +50°C (fan assisted cooling) Humidity: max 95% (non condensing)
Weight (kg)	28kgs
Dimensions (L x W x H) mm	550 x 285 x 185 mm
OPTIONS
Solar Charger	SCC Series PM-SCC-45A-1248 / PM-SCC-60A-1248 (Max. 10 sets for parallel connection)
Remote Controller	Remote monitoring available, optional cables: 3M/15M
Battery Temperature Sensor (BTS)	Compensation for the battery charging voltage and current
