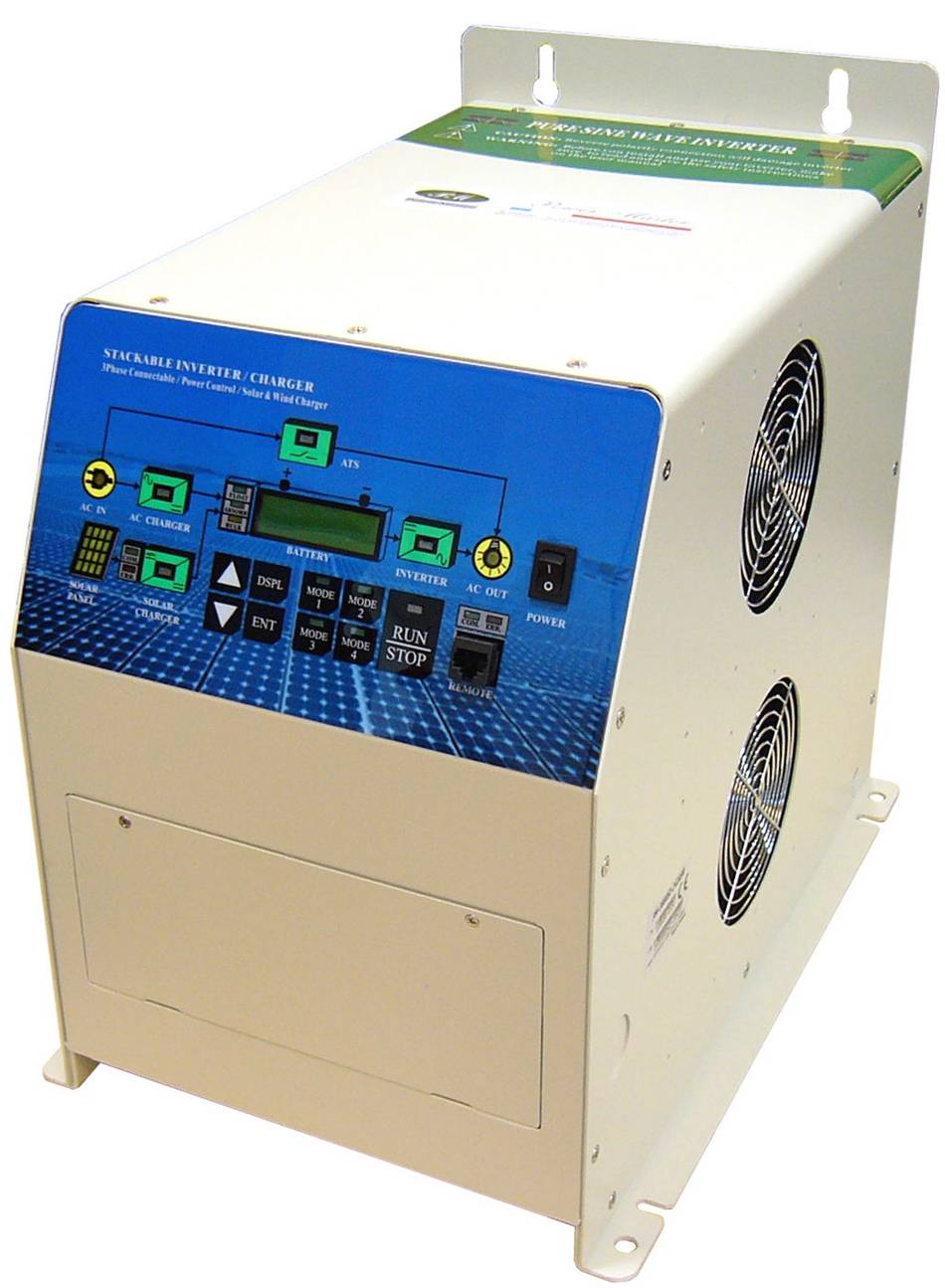

Inverter solar PM-1500SI

Mã sản phẩm PM-1500SI
Liên hệ
Số lượng
Thông tin tóm tắt sản phẩm

More inverters stackable 3 Phase connectable Uninterrupted AC power (UPS function) Power Control - Dealing with limited generator or shore side power Power Assist - Boosting the capacity of shore or generator power LCD display for parameter setting and error messages Programming auxiliary rel

Hỗ trợ mua hàng

  • 0987599957 - 01222544688

Description:
Stackable Inverter ~ When you need more power one day. Stack one more SI inverter to have more power.
Maximum 5pcs for each phase, 15pcs for 3phase.
3 Phase available ~ 2 or more SI inverters to have 3phase change is workable.
Solar charge controller: option and communicated with PM Premium series.
Premium series is stackable also. (Max. 10units).
PM provides off grid system at maximum 90KW inverter + 600Amp solar charge control


Specifications:

MODEL

PM-1500SI-12 (12 Volt)
PM-1500SI-24 (24 Volt)
PM-1500SI-48 (48 Volt)

INVERTER

Input Voltage Range (VDC)

9.5~16VDC / 19~32VDC / 38~64VDC

Output Voltage (VAC)

90~120VAC / 185~240VAC

Output Frequency

50Hz / 60Hz ± 0.1%

Output Voltage

Pure sinewave

THD

< 5%

Power Factor

All loads

Switch-on Behavior

Nominal output voltage within 20 msec.

Cont. Output Power at 25°C(W) (cos£c=1.0)

1500W

Cont. Output Power at 40°C(W) (cos£c=1.0)

1200W

Maximum Power (W)

3000W

Maximum Efficiency (%)

82 / 84 / 85

Zero-load Power (W)

12W

CHARGER

Input Voltage Range (VAC)

100~125VAC / 200~250VAC

Input Frequency

45~55Hz / 55~65Hz

Power Factor

1

Charge Characteristic

4-stage adaptive

Maximum DC Voltage Ripple (Vrms)

< 1.25 V

Charge Voltage "Absorption" (VDC)

14.4V / 28.8V / 57.6V

Charge Voltage "Float" (VDC)

13.8V / 27.6V / 55.2V

Output Charge "Voltage" (VDC) Min.,Max.

8V, 16V / 11V, 32V / 22V, 64V

Charge Current House Battery (A)

70A / 40A / 20A

Charge Current Starter Battery (A)

4A

AC INPUT SWITCH

Protected by Thermal Circuit Breaker

30A (110V) / 15A (220V)

Switch-over Time Inverter to AC Input

0 msec.

Switch-over Time AC Input to Inverter

0 msec.

Detection Time AC Input Fault

4 msec. to 10 msec.

Trip Level Mains to Inverter

90VAC / 180VAC

Trip Level Inverter to Mains

94VAC / 187VAC

Min.- Max. Frequency Range (50Hz/60Hz)

45~55Hz or 55~65Hz

GENERAL

Power Control

Yes

Power Assist

10A

Auto Transfer Switch (A)

16A

Multi-purpose Relay

3 relays

Protection

Output short circuit, Overload,
Battery overvoltage,
Battery undervoltage,
Battery reverse polarity detection,
Over temperature,
High input voltage ripple

Common Characteristics

Operating temperature range: -20°C to +50°C
(fan assisted cooling) Humidity: max 95% (non condensing)

Weight (kg)

15kgs

Dimensions (L x W x H) mm

380 x 285 x 185 mm

OPTIONS

Solar Charger

SCC Series PM-SCC-45A-1248 / PM-SCC-60A-1248
(Max. 10 sets for parallel connection)

Remote Controller

Remote monitoring available, optional cables: 3M/15M

Battery Temperature Sensor (BTS)

Compensation for the battery charging voltage and current
