Remote control box PM-RC03SSL

Mã sản phẩm PM-RC03SSL
Liên hệ
Số lượng
Thông tin tóm tắt sản phẩm

Remote control box with 3M wire. You can control everything on the remote contronl.

Hỗ trợ mua hàng

  • 0987599957 - 01222544688

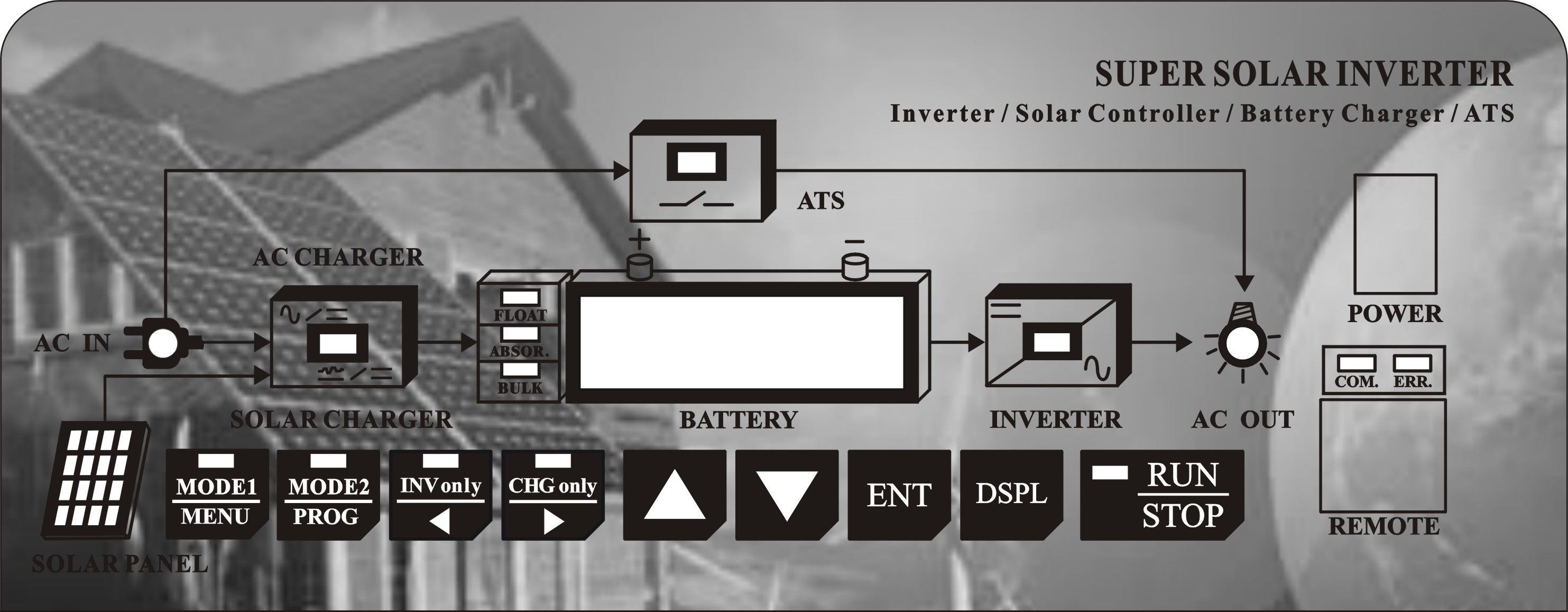

Specifications:
  • LED Indicators


    LED

    Name LED ON LED OFF

    1

    AC IN 1. Input voltage normal, and position
    > "transfer Voltage Level" (150VAC~240VAC)

    2. Input voltage frequency range in between (45~65Hz)
    No input power

    2

    AC CHARGER Green : Battery charger is working.

    3

    AC OUT There is voltage at the ¡§AC OUT¡¨ terminal.

    4

    INVERTER Green : Inverter is working.

    5

    BATTERY FLOAT or ABSOR. Or BULK charge state of battery.

    6

    ATS Green : ATS switch is active AC IN voltage is being sent directly to AC OUT terminal

    7

    RUN/STOP

    Green : SSL series turn on.
    Red : SSL series turn off.

    NOTE: Green Blink : Auto-Restart is in use

    8

    COM./ERR.

    Remote control port in communication/in error



  • Push Buttons


    Push Buttons Name

    Description

    PB1
    RUN/STOP

    SSL series RUN/STOP key

    PB2
    DSPL

    Multi-display select key

    PB3
    ENTER

    Data write-in key

    PB4
    DOWN (∇) ∇ Decrement key
    PB5
    UP (Δ) Δ Increment key
    PB6
    AC Input power to charge the battery.
    Function Key to move Cursor to the right digit at Parameter Edit.
    Before changing from one mode to another, it has to stop running and be in STOP mode.
    PB7
    DC power from battery to supply to AC loads.
    Function Key to move Cursor to the left digit at Parameter Edit.
    PB8
    AC Generator Support withDynamic Power Shifting.
    Function Key to return to Main Menu ¡§Programming¡¨
    PB9
    AC Power as Priority Support.
    Function Key to return to Main Menu "Operation".
