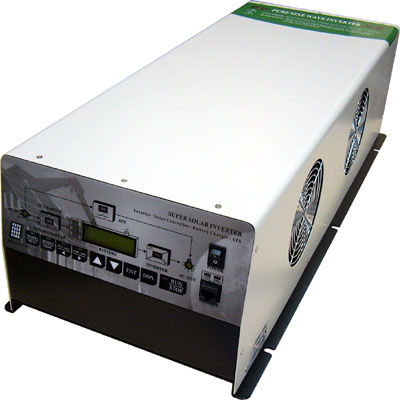

Super Solar Inverter PM-1500SSL

Mã sản phẩm PM-1500SSL

Số lượng

Thông tin tóm tắt sản phẩm

Uninterrupted AC power (UPS function) Power Control - Dealing with limited generator or shore side power Power Assist - Boosting the capacity of shore or generator power LCD display for parameter setting and error messages Programming auxiliary relay (x 3)

Hỗ trợ mua hàng

0987599957 - 01222544688

automation.saigon

dynamic_project

Description:
Super Solar Inverter ~
PURE SINE WAVE Inverter with ATS, Battery Charger and Solar Charge Controller
Connect with Solar system directly.
Smart, powerful and successfully

Specifications:

MODEL NO.		12 Volt System 24 Volt System 48 Volt System	PM-1500SSL-12X(1) PM-1500SSL-24X PM-1500SSL-48X	PM-3000SSL-12X(1) PM-3000SSL-24X PM-3000SSL-48X
GENERAL
Ventilation			Forced cooling	Forced cooling
Temperature		Operation Storage	-20°C ~ +70°C -25°C ~ +80°C	-20°C ~ +70°C -25°C ~ +80°C
Protection
	a. Output short circuit		∨	∨
	b. Over load		∨	∨
	c. Battery voltage too high		∨	∨
	d. Battery voltage too low		∨	∨
	e. DC voltage ripple too high		∨	∨
	f. Temperature Sensor
	Transformer		∨(105°C)	∨(105°C)
	Electronic & Powerstage		∨(70°C)	∨(70°C)
	BTS-3		∨(50°C)	∨(50°C)
Humidity			0~95% (non condensing)	0~95% (non condensing)
Power control Function			∨	∨
Power assist Function			∨	∨
Uninterrupted AC power			∨(less than 10 msec)	∨(less than 10 msec)
Adaptive 4-stage charge			∨	∨
Two output to charge 2 battery banks			∨	∨
Auxiliary Relay			X 3	X 3
Battery voltage sensor			∨	∨
Battery Temperature sensor (BTS-3)			∨	∨
Remote control port			∨	∨
INVERTER
Input Voltage Range (VDC)			9.5~16V / 19~32V / 38~64V
Output Voltage (VAC)			185~240 VAC / 90~120 VAC
Output Frequency			50Hz / 60Hz ± 0.1%
Output Waveform			Pure sinewave
Output Voltage THD			< 5%
Power Factor (All Loads)			∨
No linger load, crest factor			3 : 1
Cont. Power Output (W) Under 70°C (cosθ=1.0)			1500W (No derate)	3000W (No derate)
Cont. Power Output (W) Over 70°C (cosθ=1.0)			0W (Shutdown)	0W (Shutdown)
Maximum Power (W)			3000W	6000W
Maximum Efficiency (%)			82/84/85	84/86/89
Zero-load Power (W)			12W	18W
CHARGER
Input Voltage Range (VAC)			200~250 VAC / 100~125 VAC
Input Frequency			45-55Hz / 55-65 Hz
Power Factor			1
Charge Characteristic			4-stage adaptive / Bulk-Absorption-Float-Equalize
Maximum DC Voltage Ripple (Vrms)			< 1.25 V
Charge Current House Battery (A)			70A/40A/20A	140A/70A/40A
Charge Current Starter Battery (A)			4A
Absorption Voltage Default (VDC)			14.4V / 28.8V / 57.6V
Float voltage Default (VDC)			13.8V / 27.6V / 55.2V
Equalize Voltage default (VDC)			13.2V / 26.4V / 52.8V
Output Charge Voltage (min ~ max)			8V~16V / 11V~32V / 22V~64V
Battery Temperature sensor			BTS-3
SOLAR CHARGE
System voltage ratings			12, 24, 48 Vdc
Current ratings-Battery Charge Control			40A
Accuracy			12/24V:≤0.1 % ± 50 mV 48V:≤0.1 % ± 100 mV
Min. voltage to operate			9V
Max. solar array Voc			140V
Max. operating voltage			68V
Total current consumption			While operating -25mA, at idle -3mA
High temp shutdown			90°C disconnect solar 70°C reconnect solar
Transient surge protection
	pulse power rating		4500 watts
	Response		< 5 nanosec
ENVIRONMENTAL
Ambient temperature			-40 to +45°C
Storage temperature			-55 to +85°C
Humidity			100% (NC)
AC INPUT SWITCH
AC IN Terminal Circuit Breaker			30A (110V) /15A (220V)	60A (110V) /30A (220V)
Switch-over Time
	a. inverter to AC input		0 msec.
	b. AC input to inverter		0 msec.
Detection Time AC Input Fault			4 ~10 msec.
Trip Level AC Input to Inverter			90 VAC / 180 VAC
Trip Level Inverter to AC Input			94 VAC / 187 VAC
Min.~ Max. Frequency Range			45-55 Hz / 55-65 Hz
MECHANICAL
Cabinet / Protecting Class			Aluminum / IP20
Dimension (H X W X D)			Wall: 298 x 256 x 368 Table: 189 x 285 x 494 (mm)	Wall: 355 x 256 x 368 Table: 189 x 285 x 708 (mm)
Weight (kgs)			30 kgs	35 kgs

(1) X should be 1, output voltage = 90~120 VAC or 2, output voltage = 185~240 VAC
